This chapter describes how to install a SysMaster Agent.
All hardware and software requirements for an Agent that are described in "1.2. Pre-Installation Tasks" must be met before installing the Agent. Installing an Agent is similar to installing the Master. Once the Master has been installed, Agent installation is simple.
If the root account or the account used to install the resource is used to install the Agent, it is possible to control multiple resources on a single node. Otherwise, the Agent must be installed for each account that was used to install the resources. Therefore, if multiple resources must be managed on a single node, the Agent should be installed using the root account or the account used to install the resources.
The following is a summary of the Agent installation process.
-
Installing Agent
-
Verifying Agent Installation
-
Configuring and Registering Agent Environment
-
Starting and Terminating Agent
Note
For information on installing a SysMaster Agent using the smadmin tool, refer to "SysMaster Administrator's Guide".
This section describes how to install an Agent.
An Agent is installed in the following order.
-
After granting execution permission for the SysMaster5_0_Master_Agent_Enterprise.bin file, execute the file.
When the following screen is displayed, press <ENTER> to continue.
$ chmod u+x SysMaster5_0_Master_Agent_Enterprise.bin $ ./SysMaster5_0_Master_Agent_Enterprise.bin Preparing to install... Extracting the installation resources from the installer archive... Configuring the installer for this system's environment... Launching installer... Preparing CONSOLE Mode Installation... =============================================================================== Choose Locale... ---------------- 1- English ->2- 한국어 CHOOSE LOCALE BY NUMBER: 1 =============================================================================== SysMaster5.0 (created with InstallAnywhere by Macrovision) ------------------------------------------------------------------------------- Introduction ------------ InstallAnywhere will guide you through the installation of SysMaster5.0. It is strongly recommended that you quit all programs before continuing with this installation. Respond to each prompt to proceed to the next step in the installation. If you want to change something on a previous step, type 'back'. You may cancel this installation at any time by typing 'quit'. PRESS <ENTER> TO CONTINUE:
-
When the license agreement is displayed, press <ENTER> to continue.
=============================================================================== License Agreement ----------------- Installation and Use of SysMaster5.0 Requires Acceptance of the Following License Agreement: Installation and Use of SysMaster (hereafter, Software) Requires Acceptance of the Following License Agreement: TmaxSoft Co., Ltd. (hereafter, TmaxSoft) License Agreement (hereafter, Agreement) Product : SysMaster This is a legal agreement between you (either an individual or an company) and TmaxSoft. By opening the Software package and/or by installing or using the Software, you agree to be bound by the terms of this Agreement. This Agreement is a license agreement, not a sales contract, between you and TmaxSoft. 1. Grant of license: TmaxSoft hereby grants you a non-exclusive, non-transferable, non-sublicensable limited license to the Software and any intellectual property related to the Software including, but not limited to, user manuals and implementation instructions. You should read this Agreement carefully before opening the Software package, installing or using the Software. Once you open the Software package, install or use the Software, you are deemed to have agreed to the contents of this Agreement. 2. Copyright: The Software and all related intellectual property is owned by TmaxSoft and protected by copyright laws and international treaty provisions. You shall not use or copy the Software without usage authorization of TmaxSoft. You also shall not copy the printed materials accompanying the Software, nor print copies of any user documentation provided in online or electronic form. 3. Other restrictions: You shall not rent, lease, or lend the Software and accompanying materials on a permanent basis to any individual or company. You shall not, nor permit any third party to reverse engineer, decompile, disassemble, modify, adapt, create derivative works from or otherwise attempt to derive source code from the Software provided. TmaxSoft Co., Ltd. -
Enter y + <ENTER> to accept the terms of the agreement.
DO YOU ACCEPT THE TERMS OF THIS LICENSE AGREEMENT? (Y/N): y
-
Select the Install Set. For Agent, enter 2 + <ENTER>.
=========================================================================== Choose Install Set ------------------ Please choose the Install Set to be installed by this installer. 1- Master ->2- Agent 3- Only Provider ENTER THE NUMBER FOR THE INSTALL SET, OR PRESS <ENTER> TO ACCEPT THE DEFAULT : -
Select the platform where SysMaster will be installed.
=========================================================================== Choose Platform --------------- Choose current system ( platform-architecture ) 1)HP-UX PA-RISC 2)HP-UX ITANIUM 3)AIX 5L 4)AIX 6L 5)AIX 7L 6)Solaris Sparc 7~10 7)Solaris x86 7~10 8)Linux i386 9)Linux ITANIUM 10)Linux x86_64 Quit) Quit Installer Choose Current System (DEFAULT: 6):
-
Select the kernel bit.
=========================================================================== Choose Kernel Bit Please Choose Kernel Bit? ->1- 32bit 2- 64bit 3- previous ENTER THE NUMBER OF THE DESIRED CHOICE, OR PRESS <ENTER> TO ACCEPT THE DEFAULT: -
Enter JDK directory path.
=============================================================================== Choose JDK Folder ----------------- Please Choose a Folder: Input User JDK Folder (DEFAULT: /usr/java5_64):
-
Enter the installation path for the Agent.
=========================================================================== Choose Install Master Folder ---------------------------- Where would you like to install? (DEFAULT: /home/sysmaster1/sysmaster/agent): /data1/apmqam/sysmaster/agent
-
Configure the Master server to which the Agent will connect to.
================================================================ Choose Master Infomation ------------------------ Master IP (DEFAULT: 192.168.1.87): Master Base Port (DEFAULT: 22000): Master Request Port (DEFAULT: 22002): Master Stat Port (DEFAULT: 22006):
-
Configure the Agent.
Agent IP (DEFAULT: 192.168.1.34): Agent Base Port (DEFAULT: 22100):
-
Select whether to install WAS DC(Data Collector).
=============================================================================== Install Was Dc -------------- Do you wish to install Was Dc? ->1- YES 2- NO ENTER THE NUMBER OF THE DESIRED CHOICE, OR PRESS <ENTER> TO ACCEPT THE DEFAULT: -
Configure WAS DC information.
=============================================================================== Input Was Dc Information ------------------------ Was Dc Home Dir (DEFAULT: /home/sysmaster1/sysmaster/agent/was_dc): /data1/apmqam/sysmaster/agent/was_dc Net Hist Port (DEFAULT: 22007):
-
Select whether to install Oracle DC.
=============================================================================== Install Oracle Dc ----------------- Do you wish to install Oracle Dc? ->1- YES 2- NO ENTER THE NUMBER OF THE DESIRED CHOICE, OR PRESS <ENTER> TO ACCEPT THE DEFAULT: -
Configure Oracle DC information.
=============================================================================== Choose Platform --------------- Choose current oracle system ( platform-architecture ) 1)HP-UX ITANIUM 2)AIX 3)Solaris 4)Linux Quit) Quit Installer Choose Current System (DEFAULT: ): 1 =============================================================================== Choose Kernel Bit ----------------- Please Choose Kernel Bit? ->1- 32bit 2- 64bit ENTER THE NUMBER OF THE DESIRED CHOICE, OR PRESS <ENTER> TO ACCEPT THE DEFAULT: 2 =============================================================================== Input Oracle Dc Information --------------------------- Oracle Dc Home Dir (DEFAULT: /data1/apmqam/sysmaster/oracle_dc): /data1/apmqam/sysmaster/agent/oracle_dc Oracle IP (DEFAULT: 192.168.1.34): Oracle Port (DEFAULT: 1521): Oracle User (DEFAULT: SMADM): Oracle User Passsword (DEFAULT: SMADM): Oracle SID (DEFAULT: ora11g): Oracle Privilege (DEFAULT: ): Master Transaction Port (DEFAULT: 22007): -
Configure the full path for the Oracle JDBC Library that will be used by the Agent to collect information.
=============================================================================== Choose Oracle Jdbc Library Full Path.(ex:/home/ora11g/oracle/jdbc/lib/ojdbc6.jar) --------------------------------------------------------------------------------- Input Oracle Jdbc Library Full Path. (DEFAULT: /data1/apmqam/sysmaster) :
-
Select whether or not to install Tmax DC.
=============================================================================== Install Tmax Dc --------------- Do you wish to install Tmax Dc? ->1- YES 2- NO ENTER THE NUMBER OF THE DESIRED CHOICE, OR PRESS <ENTER> TO ACCEPT THE DEFAULT: -
Select whether or not to install Tibero DC.
=============================================================================== Install Tibero Dc ----------------- Do you wish to install Tibero Dc? ->1- YES 2- NO ENTER THE NUMBER OF THE DESIRED CHOICE, OR PRESS <ENTER> TO ACCEPT THE DEFAULT: -
Select whether or not to install AnyLink DC.
=============================================================================== Install AnyLink Dc ----------------- Do you wish to install AnyLink Dc? ->1- YES 2- NO ENTER THE NUMBER OF THE DESIRED CHOICE, OR PRESS <ENTER> TO ACCEPT THE DEFAULT: -
When installation is completed, press <ENTER> to exit the installer from the following screen.
=============================================================================== Pre-Installation Summary ------------------------ Please Review the Following Before Continuing: Product Name: SysMaster5.0 Disk Space Information (for Installation Target): Required: 24,543,147 bytes Available: 213,394,419,712 bytes PRESS <ENTER> TO CONTINUE: =============================================================================== Installing... ------------- [==================|==================|==================|==================] [------------------|------------------|------------------|------------------] =============================================================================== Installation Complete --------------------- Congratulations. SysMaster5.0 has been successfully installed to: /data1/apmqam/sysmaster/agent PRESS <ENTER> TO EXIT THE INSTALLER:
[Note]
If there is a blank space in the path that is entered during the installation in Windows, modify the path as in the following. Up to 8 characters can be used for a path by entering 6 characters followed by '~1' or '~2'.
-
Example 1
C:\Program Files\Java\jdk1.5.0_12 --> C:\Progra~1\Java\jdk1.5.0_12
-
Example 2
When both C:\Program Files and C:\Program Files (x86) exist, and Java is installed in C:\Program Files (x86) --> C:\Progra~2\Java\jdk1.5.0_12
-
Example 3
C:\Documents and Settings\Java\jdk1.5.0_12 --> C:\Docume~1\Java\jdk1.5.0_12
This section describes how to verify that the Agent has been installed successfully.
The following directory is created after an Agent has been installed. In the following example, the installation directory for the Agent has been set to 'sysmaster'.
$sysmaster
+- agent
|
+- UninstallerData
+- bin
+- config
+- lib
+- logs
+- temp
- UninstallData
-
Contains SysMaster uninstallation files.
- bin
-
Contains executable files such as smagent, etc.
- config
-
Contains property files required for Master operation.
- lib
-
Contains library files.
- logs
-
Contains log files.
- temp
-
Contains the intermediate data results that is processed by the Agent.
This section describes how to set the environment configurations for an Agent and register the Agent with the Master.
Modify the following files to specify the environment configurations of an Agent.
-
sysmaster.properties
-
smagent.env
-
smboot
sysmaster.properties
Specify the environment configurations of an Agent in the following file.
$AGENT_HOME/config/sysmaster.properties
The following are the contents of the sysmaster.properties file.
##############################################################################################
#
# [ NETWORK(Mandatory) ]
#
# master.hostname Master Hostname(IP)
# master.baseport Master Base Port
#
# master.port.req Master Request Port(default : master.baseport + 2)
# master.port.stat Master Statistic Port
#
# agent.hostname Agent Hostname(IP)
# agent.port.jrmpadaptor Agent Port for JRMP Adaptor Export
#
##############################################################################################
master.hostname=192.168.1.87
master.port.base=22000
master.port.req=22002
master.port.stat=22006
agent.hostname=192.168.1.34
.................Omitted
##############################################################################################
#
# [ LOGGING ]
#
# log.level Log Level(debug|info|warn|error|fatal|off)
# log.format Log Format([%c:%-5p] %m {%C{1}.%M(%L)}%n)
# log.redirect false if u don't want to redirect logs to smlog file
#
##############################################################################################
log.level=debug
log.format=%d{HH:mm:ss} [%c{1}] [%-5p] %m%n
log.redirect=true
log.retention=7
The following is description of the properties.
| Property | Description |
|---|---|
| master.hostname | IP address of Master. |
| master.port.base | Base port number of Master. Applies to SYSMASTER_BASEPORT of smmaster.env. |
| master.port.req | nio port used for real-time user requests. Set to ‘SYSMASTER_BASEPORT + 2’ for default installation. Must be modified when there are 3 or more containers. |
| master.port.stat | Port number used to transfer data from Agent, DC, etc. Set to ‘SYSMASTER_BASEPORT + 6’ for default installation. Must be modified when there are 3 or more containers. |
| agent.hostname | IP address of Agent. |
| log.retention | Expiration date for deleting the logs. |
smagent.env
Check the following file.
$AGENT_HOME/bin/smagent.env
The following are the contents of the smagent.env file.
# # For customizing SysMaster agent environment. # # set up SYSMASTER_HOME. SYSMASTER_HOME=/data1/apmqam/sysmaster/agent SYSMASTER_LOG_HOME=$SYSMASTER_HOME/logs # set up SYSMASTER_BASEPORT. SYSMASTER_BASEPORT=22000 # set up SYSMASTER_SYSMON_HOME. SYSMASTER_SYSMON_HOME=$SYSMASTER_HOME/lib/provider/sysmon/aix5L_64 # set up JAVA_HOME JAVA_HOME=/usr/java5_64 # set up JAVA_ARGS JAVA_ARGS="-Xms32m -Xmx64m" export SYSMASTER_HOME SYSMASTER_BASEPORT SYSMASTER_SYSMON_LIB export JAVA_HOME JAVA_ARGS ... Omitted # set up BOOTSTRAPPER_OPTION. BOOTSTRAPPER_OPTION="-Dagent -Dsysmaster.port=$SYSMASTER_BASEPORT -Dsysmaster.home=$SYSMASTER_HOME -Dsysmaster.logpath=$SYSMASTER_LO G_HOME -Djava.security.manager -Djava.security.policy=$SYSMASTER_HOME/bin/sm-policy.policy"
The following is description of the variables.
| Variable | Description |
|---|---|
| SYSMASTER_HOME | ${AGENT_HOME}. |
| SYSMASTER_LOG_HOME | Path to the Agent log file. |
| SYSMASTER_BASEPORT | Uses Master's base port setting. |
| SYSMASTER_SYSMON_HOME | OS folder. ${AGENT_HOME}/lib/provider/sysmon/os nameThe following platforms are supported. (OS naming convention: [OS Name + bit number])
|
| JAVA_HOME | Java HOME. |
| BOOTSTRAPPER_OPTION NAT | Add the Master IP to the sysmaster.proxy in the BOOTSTRAPPER_OPTION section when the network (NAT) between the Master and Agent do not match. (e.g., -Dsysmaster.proxy=192.168.32.199) |
Create smboot
After registering the Agent in the Web Admin, create the following file. For more information about registering an Agent, refer to"3.4.2. Agent Registration".
$AGENT_HOME/bin/vi smboot
The following are the contents of the smboot file.
#!/bin/sh
smagent -n {Agent name registered in WEB Admin}
An Agent must be registered with the Master before it can be started. SysMaster Web Admin is used to register the Agent. Once it is registered, the Agent is ready to run.
Start SysMaster Web Admin, go to [ADMIN] > [SysMaster] > [Resource] to register and manage a SysMaster Agent.

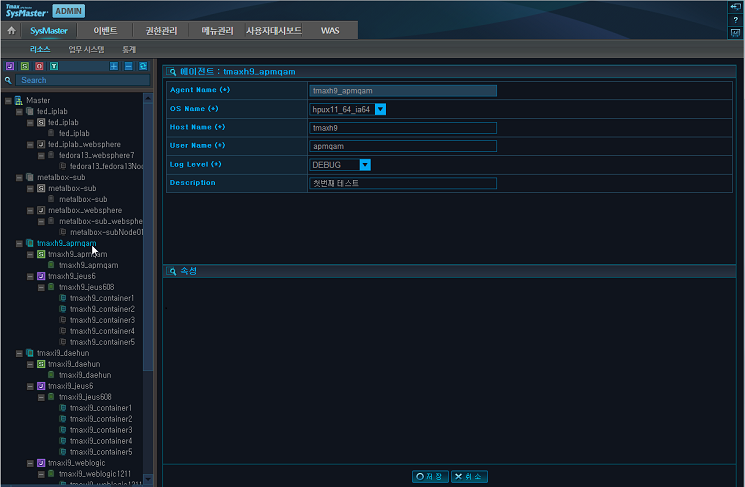

Right click on the Master from the top left menu, and then select [Add Agent]. Fill in the required fields, and then click [Save] to complete the registration.
The following describes each field. (*: Required Field)
| Field | Description |
|---|---|
| Agent Name(*) | Set by the user. In general, use the name of the node where Agent will be installed for easy access. (Max length = 32) |
| OS Name(*) | OS of the machine where Agent will be installed. |
| Host Name(*) | Host name of the machine where Agent will be installed. |
| User Name(*) | User name used to install Agent. |
| Log Level(*) | Log Level |
| Sysmon Generate | If set, a Sysmon resource will be automatically created. (This setting must be checked when installing for the first time.) |
| Description | Brief description of Agent. (Max 2000 characters) |
| Message | Full description of Agent. |
Once Sysmon resource registration is completed, the Agent registration information can be viewed as in the following.

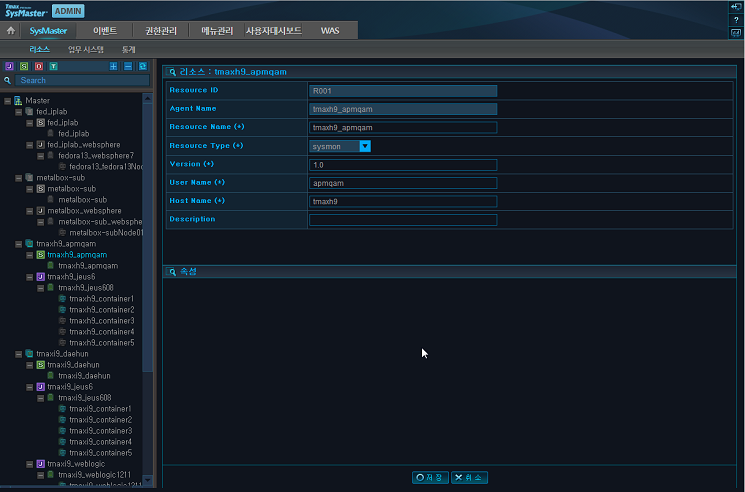

By selecting the automatically registered Node, the registration information of the node can be viewed as in the following.
The Sysmon Provider, the Provider that is installed with the Agent, monitors the system resource status.
This section describes how to start and terminate a SysMaster Agent.
The following are the steps for starting a SysMaster Agent.
-
If smboot was not created, execute smagent from the $AGENT_HOME/bin directory as in the following. The Agent Name is required. Use the name that was used to register the Agent.
$AGENT_HOME/bin/smagent -r -n {Agent Name}The following describes each smagent option.
Option Description -n Start the Agent when smboot is created successfully. -r Re-register the Agent name and start the Agent when there is an error such as a network error between the Master and Agent. -a Add and start the Agent from the console. -v Version information of the Agent. -h Help for smagent. -
If an Agent starts successfully, the following screen is displayed.
[15:09:11] SysMaster agent main server started [15:09:11] *** Initialized Agent MBeans *** JMImplementation:type=MBeanServerDelegate tmaxh9_apmqam:name=sysmaster.agent.action.AgentMainActionMBean tmaxh9_apmqam:name=sysmaster.agent.action.AgentMainActionMonitorMBean tmaxh9_apmqam:name=sysmaster.agent.mbean.AgentAdminMBean tmaxh9_apmqam:name=sysmaster.agent.mbean.FileTransfererMBean tmaxh9_apmqam:name=sysmaster.agent.mbean.MessageReceptorMBean tmaxh9_apmqam:name=sysmaster.agent.mbean.SystemExplorerMBean tmaxh9_apmqam:name=sysmaster.agent.mbean.SystemFileFilterMBean tmaxh9_apmqam:name=sysmaster.agent.monitor.AgentMonitorMgrMBean tmaxh9_apmqam:name=sysmaster.provider.sysmon.agent.init.SysmonResourceInitializerMBean,resid=R001 tmaxh9_apmqam:name=sysmaster.provider.sysmon.agent.manager.SystemResourceMonitorMBean,resid=R001 tmaxh9_apmqam:name=sysmaster.provider.was.agent.init.WasResourceInitializerMBean,resid=R002 tmaxh9_apmqam:name=sysmaster.provider.was.agent.service.WasAgentMBean,resid=R002 [15:09:11] SysMaster agent main started [15:09:11] Resource moniotor [was] scheduler started [15:09:11] Resource resource [R002] monitor task scheduler started [15:09:11] Resource moniotor [sysmon] scheduler started [15:09:11] Resource resource [R001] monitor task scheduler started [15:09:11] Agent jmx context [tmaxh9_apmqam] registered [15:09:12] *** Agent [tmaxh9_apmqam] configuration *** host : tmaxh9 user : apmqam home : /data1/apmqam/sysmaster/agent/ [15:09:12] Agent [tmaxh9_apmqam] registered ====================================================== AGENT [tmaxh9_apmqam] READY... ====================================================== SysMaster agent [tmaxh9_apmqam] boot success... [15:09:12] All stdout,stderr will be redirect to: /data1/apmqam/sysmaster/agent/logs/smlog -
If an Agent starts successfully, the following process can be viewed.
Dagent ps -ef|grep Dagent
The '-n' option must be used to terminate an Agent.
-
Execute smagent from the $AGENT_HOME/bin directory as in the following.
$ $AGENT_HOME/bin/smdown -n
-
The following describes each smdown option.
Option Description -n Terminates Agent after sending a request to the Master. -i Terminates Agent immediately without sending a request to the Master. -h Help for smdown. -
If an Agent is terminated successfully, the following screen is displayed.
-
Starting agent shutdown... 15:09:00 SMSTR INFO Now starting stop agent server... 15:09:00 SMSTR INFO [SmNioClientManger] Finish SmNioClientManger Stop 15:09:00 SMSTR INFO [ClientSendWorker] Stoped 15:09:00 SMSTR.WAS INFO [ReceiveWorker] Stop ReceiveWorker : R002 15:09:00 SMSTR INFO [ReceiveWorker] Stop ReceiveWorker : R001 15:09:00 SMSTR INFO Trying to shutdown File job client 15:09:00 SMSTR INFO Destroy AGENT file job client success. 15:09:00 SMSTR INFO Destroy AGENT Sysmonadmin success. 15:09:00 SMSTR INFO Resource resource [R001] monitor task scheduler ended 15:09:00 SMSTR INFO Resource resource [R002] monitor task scheduler ended 15:09:01 SMSTR INFO Destroy AGENT PROVIDER mbeans.xml configurations. 15:09:01 SMSTR INFO Master Connector closed 15:09:01 SMSTR INFO SysMaster agent main stopped 15:09:01 SMSTR INFO Destroy MASTER registration 15:09:01 SMSTR INFO Destroy AGENT mbean server 15:09:01 SMSTR INFO Destroy AGENT Jrmpadaptor port [22100] Agent shutdowned...
