Configuring Settings

You can configure various options related to analysis and reporting to suit your needs.

The Settings menu is available in the [Analysis] and [Report] menus.

  1. In the [Analysis] and [Reports] menus, click the image icon at the bottom of the view icons on the left side of the screen.

    figure option icon click

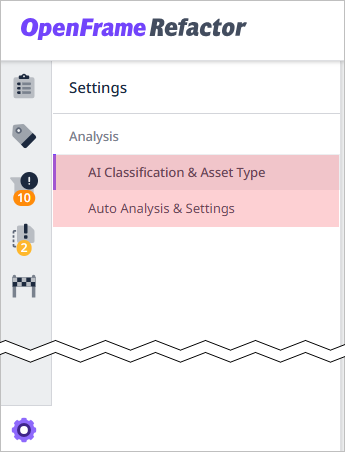

  2. When the Settings screen opens, select the desired category and set the corresponding options.

    figure option set catalog
    Category Description

    AI Classification & Asset Type

    Settings for asset type management.

    Auto Analysis & Settings

    Settings related to COBOL and JCL asset analysis.

Managing Asset Types

In addition to the default asset types provided, users can add, edit, and delete asset types. These settings can be managed in the 'Asset Types > Custom Types' section under the 'AI Classification & Asset Type' category.

  • Add

    Adds a new asset type.

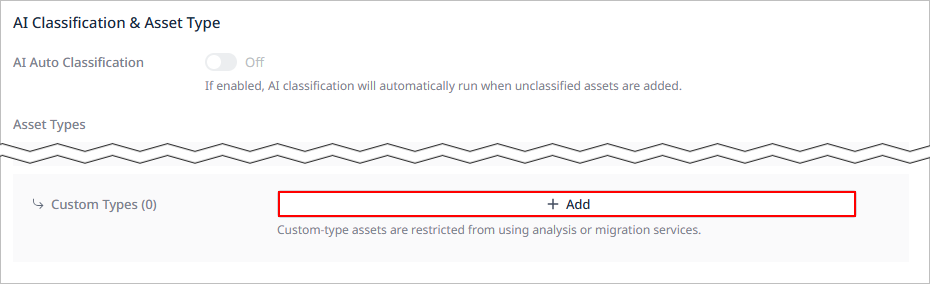

    1. Click the [+ Add] button.

      figure option add asset type click

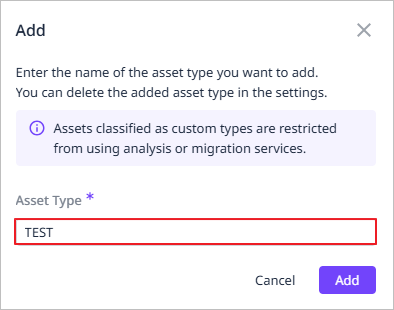

    2. When the Add dialog box opens, enter the name of the asset type in the 'Asset Type' field, then click the [Add] button.

      figure option add asset type popup

  • Edit

    Change the name of the added asset type.

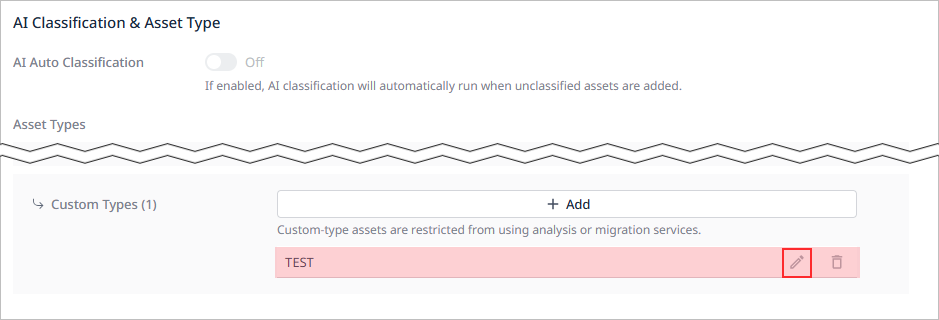

    1. In the list of Custom Types, click the image icon next to the asset type you want to edit.

      figure option edit asset type click

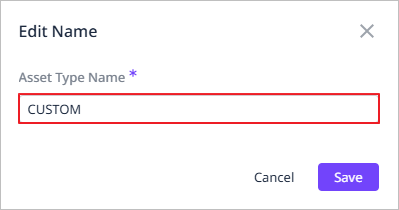

    2. When the Edit Name dialog box opens, enter a new name in the 'Asset Type Name' field and click the [Save] button.

      figure option edit asset type name popup

  • Delete

    Delete the added asset type.

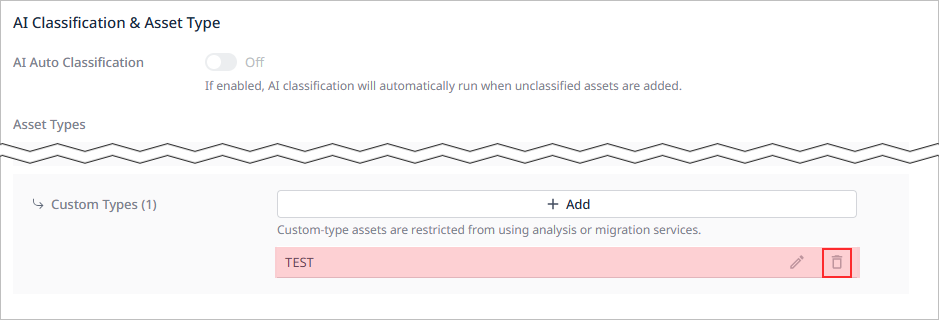

    1. In the list of Custom Types, click the image icon next to the asset type you want to delete.

      figure option delete asset type click

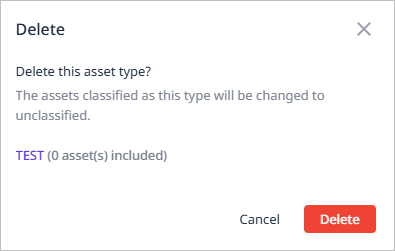

    2. When the Delete dialog box opens, click the [Delete] button.

      figure option delete asset type popup

      Assets belonging to the deleted asset type are automatically converted to unclassified assets.

Analysis Settings for COBOL Assets

You can configure options to be applied for analysis of COBOL assets. These settings can be managed in the 'Analysis Setting > COBOL' section under the 'Auto Analysis & Settings' category.

figure option analysis setting cobol

The following describes each item.

Item Description

Limit Copybook Name Length

Specifies whether there is a length limit for the copybook name.
When set to 'On', any copybook whose name exceeds 8 characters will be considered missing.

Execute Migration

Indicates whether the migration is executed.

Embedded SQL

Type of embedded SQL.

Skip Undefined Variables

Specifies whether to ignore undefined variables.

Compiler

Type of COBOL compiler.

Analysis Settings for JCL Assets

You can configure the options to be applied for analysis of JCL assets. These settings can be managed in the 'Analysis Setting > JCL' section under the 'Auto Analysis & Settings' category.

figure option analysis setting jcl

The following describes each item.

Item Description

Execute Migration

Indicates whether the migration is executed.
(※ Currently, it is fixed to ‘On’ status and cannot be changed)

Operating System

Type of operating system.
