Tmax Applications

This chapter describes the basic concepts, client/server programs, APIs, and errors for developing Tmax applications.

1. Application Configuration

The Tmax application consists of a client program and a server program. The client program handles user interfaces (presentation logic), while the service routines for servers handle tasks and implements database access logic.

When a request is made from the client, the server processes the request. Even if there are N clients, only one service is started for a single call. The client requests first a connection to the CLL, and a tpcall is made for the request. Then, the CLL executes the request for the corresponding service. Once the execution is complete, the CLL returns the request. When connecting to Tmax, the client program must be configured with connection settings, such as the host address and port number. This information is stored in the .profile or the tmax.env file and is set in the TMAX_HOST_ADDR and TMAX_HOST_PORT properties.

The server program consists of the main() provided by Tmax and service routines developed by the developer.

Tmax provides various API functions to handle connection data requests from clients and servers. Tmax API complies with the international standard for distributed processing (X/Open DTP model). When an application is developed, only the service routine is developed.

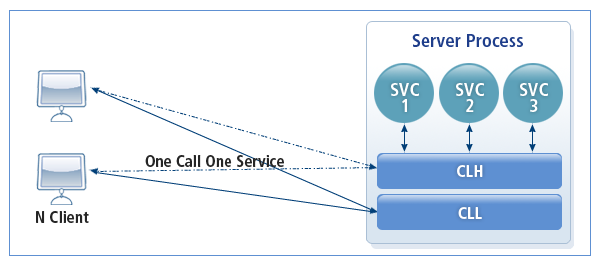

The following figure shows the configuration of a Tmax application.

figure client server
Tmax Application Configuration

2. Buffer Types

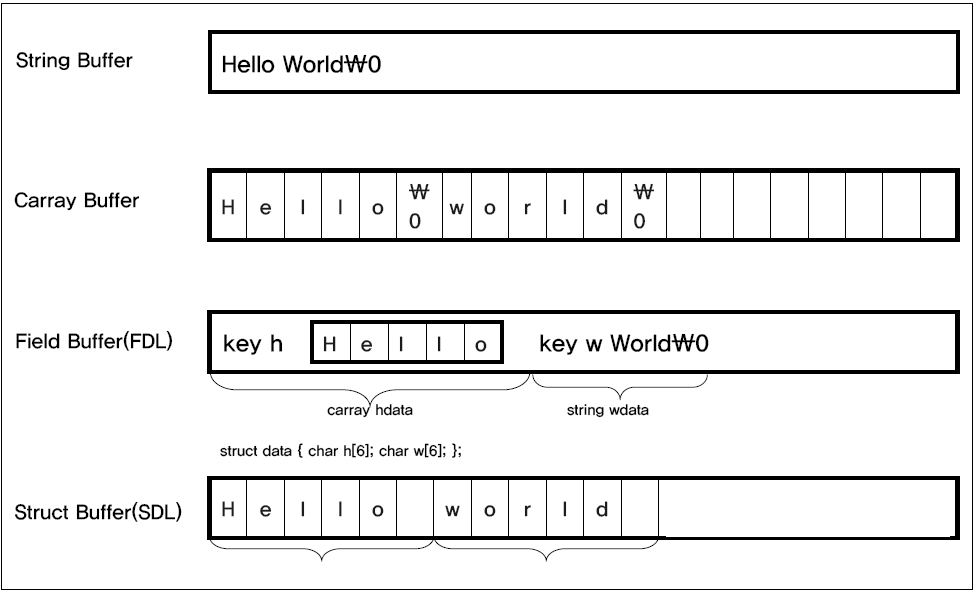

When a client requests a service from a server, it uses the following communication buffer for communication.

figure buffer type
Tmax Communication Buffer Types

  • STRING Buffer

    Used to save a string that ends with NULL. The buffer length does not need to be specified. No issues arise due to platform differences.

  • CARRAY, X_OCTET Buffers

    Consists of a byte array with a specified length. These buffers are used to sending binary-type data. When exchanging data, the length must be specified. No issues arise due to platform differences.

  • STRUCT, X_C_TYPE Buffers

    Used for data communication with C language structs. All primitive types can be used as struct members. Declared structs and arrays of structs can also be used as members.

  • X_COMMON Buffer

    C struct with member types limited to char, int, and long types.

  • FIELD Buffer

    Manages field keys and data values as key-value pairs and can store all primitive data types. It is used when the exchanged data types are dynamic, and provides various APIs for accessing and converting data.

FDL (Field Definition Language)

FDL can operate and handle specific data from the desired information using a field key buffer, unlike a general structure.

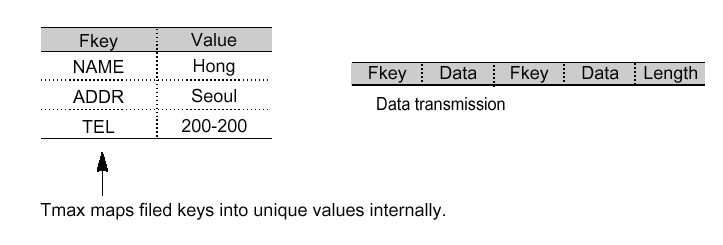

FDL specifies names for each field key (NAME, ADDR, and TEL), numbers, and types in a <XXX.f> field buffer file. If <XXX.f> is compiled using FDLC, a file mapped into <XXX_fdl.h> is created. Field keys and values selected by a user can be accessed by referring to the <XXX_fdl.h> included during compilation.

figure chap2 9
FDL Storage Method

3. Client/Server Programs

The client program handles user interfaces (presentation logic), while the service routine for servers implements processing and database access logic.

3.1. Client Program

A client program receives input from a user, requests a service from the server, receives a response from the server, and outputs the service response to the user.

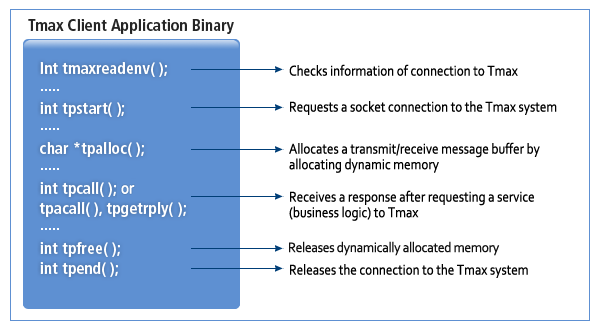

Client Program Flow

The following is the flow of the client program:

main()
{
     Connect to Tmax
     Allocate a buffer for transmission/reception
     Write client business logic (receives a user request and saves it to the transmit message buffer)
     Request and respond to a service ((sends the transmit message buffer to Tmax           CLH and saves the response data to the reception message buffer             through Tmax CLH)
               Write client business logic (displays the response data to the user)
     Release the buffer for transmission/reception
     Release the connection to Tmax
}
figure client prog process
Client Program Flow

The following describes the major functions of the client program

  • Function for Tmax Communication Environment

    Function Description

    tmaxreadenv()

    Specifies Tmax environment variables that are referenced when a Tmax client program is executed in a specific file. When writing a program that calls the tmaxreadenv() API, a specific file path and name can be set. The file can then be parsed with a file pointer when the corresponding client program is executed.

    Tmax environment variables, such as TMAX_HOST_ADDR and TMAX_HOST_PORT, are loaded into memory that is allocated when a client program is executed and used to call related API functions.

  • Client-Server Connection Functions

    Function Description

    tpstart()

    Requests a socket connection to CLL and passes the accepted connection to CLH. When this function is called, values set in TMAX_HOST_ADDR and TMAX_HOST_PORT are used.

    tpend()

    Terminates the socket connection via the CLL process.

  • Communication Buffer Allocation and Deallocation Functions

    Function Description

    tpalloc()

    Allocates memory used for data transmission/reception between clients and servers via Tmax. The memory allocated is the size required for data transmission/reception

    Dynamically allocated memory must be explicitly freed.

    tpfree()

    Memory dynamically allocated using tpalloc() must be explicitly released (returned). Allocated memory buffer must be freed, otherwise garbage (memory leakage) occurs.

  • Client Synchronous Communication Functions

    Function Description

    tpcall()

    Requests a service from CLH and transfers transmission data. CLH checks a service requested by a client and then transfers it to a server application process.

    The client waits until receiving a response to its service request.

  • Client Asynchronous Communication Functions

    Function Description

    tpacall()

    Requests a service from CLH and transfers transmission data. CLH checks a service requested by a client and then transfers it to a server application process.

    The client performs logic after calling tpacall() regardless of whether it receives a response to the service request.

    tpgetrply()

    Requests response data from CLH through the parameter (cd) value for tpacall().

    If there is response data to be sent to a corresponding client in CLH, the data is immediately transferred.

    It waits until the response data is received, or sends a reception error to the client according to flags.

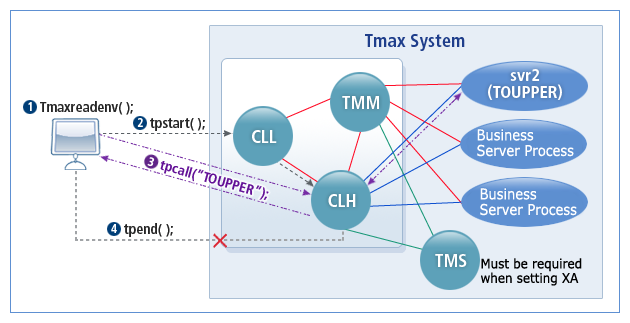

The following figure shows the process of major functions in a client program.

figure client prog process1
Process of Client Program Functions

For more information about each function, refer to Tmax Application Development Guide and Tmax Reference Guide.
Client Program Configuration

To create an executable file, compile a client program after coding is completed.

To compile a client program, the following must be defined: a client program written by a developer, the Tmax client library, a structure file if a structure buffer is used, and a field key buffer file in which field tables are defined.

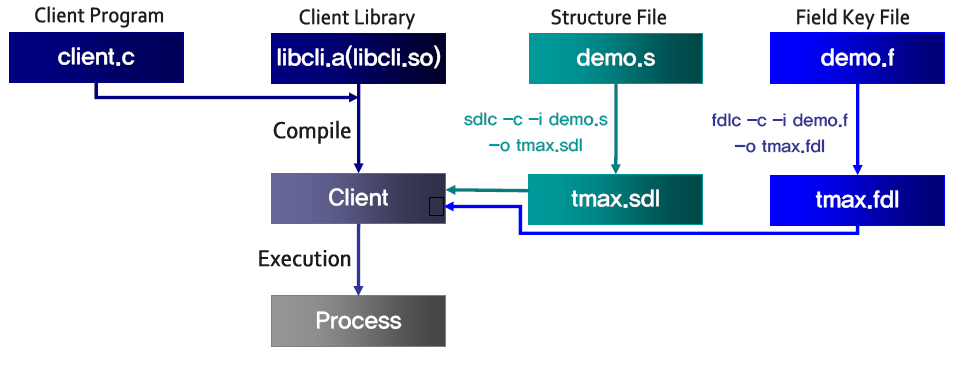

The following figure shows the configuration of a client program:

figure client prog
Tmax Client Program Configuration

  • Client Program

    A client program written by a developer.

  • Tmax Client Library (libcli.a / libcli.so)

    The library provided by Tmax. It is the object code of functions used to develop a client program.

  • Structure File

    If a client program uses a structure such as STRUCT, X_C_TYPE, or X_COMMON, a structure file that ends with <file_name.s> is needed. The structure file must be compiled with the sdlc command in advance. After compilation, the data of a structure is converted to standard communication type data and a binary type file is created. The binary file is used to send and receive data with the standard communication method when a client program is executed.

  • Field key File

    If a field key structure is used, a field definition file that ends with <.f> is needed. If the file is compiled using the fdlc command, a field key buffer file creates <field_key_buffer_name_fdl.h> using the key mapping method and uses it when a program is executed. Unlike an existing structure file, it can reduce resource waste because some user desired fields can be operated and transferred. However, overhead can occur when mapping keys.

3.2. Server Program

A server program receives a user request, handles it, and returns the response to the client.

Server Program Flow

The following is the flow of a server program.

int tpsvrinit(int argc, char **argv)
{
     Initializes a server (connect to DBMS in Non-XA mode)
}

SVC_NAME(TPSVCINFO *msg)
{
     Handles DB transactions (ESQL), business processing logic
     Sends response result to the client
}

int tpsvrdone()
{
     Executes server shutdown tasks (disconnect from the DBMS in Non-XA mode)
}

void tpsvctimeout()
{
     Related to SVCTIME and is called by the service timeout handler.
}

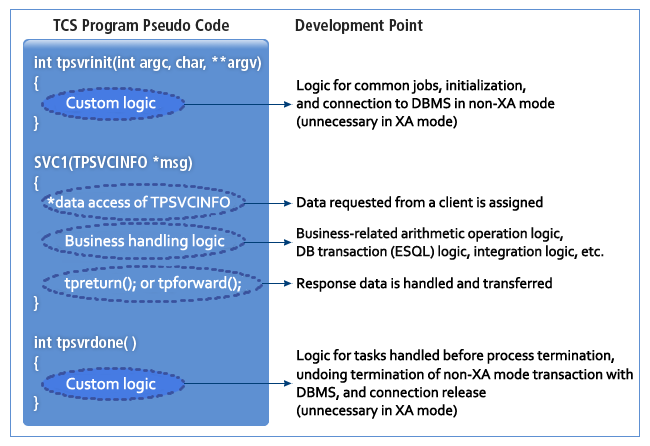

figure server prog process
Server Program Flow

The following describes major functions of the server program.

  • Server Initialization Functions

    Function Description

    tpsvrinit()

    Called when the server application process starts initially.

    The standard input of tpsvrinit() is made through the configuration for the Tmax configuration file. A developer redefines and then uses tpsvrinit(). If it is not redefined, tpsvrinit(), which basic logic of the Tmax server library is applied to, is called.

  • Functions for Server Shutdown

    Function Description

    tpsvrdone()

    Called just before the server application process is normally terminated.

    The developer redefines and then uses tpsvrdone(). If it is not redefined, tpsvrdone(), which basic logic of the Tmax server library is applied to, is called.

  • Tmax Response Functions

    Function Description

    tpreturn()

    Notifies CLH of the termination of service logic and transfers response data. CLH checks the information of the service caller and immediately sends response data.

    If the dynamically allocated memory pointed to by the response data buffer is freed, the server application stops any running processes and readies to receive the next response.

    tpforward()

    Notifies CLH of the termination of service logic and transfers data to SVC. CLH checks whether the server process that includes the service to be transferred is available and immediately sends data.

    If the dynamically allocated memory pointed to by the response data buffer is freed, the server application stops any running processes and readies to receive the next response.

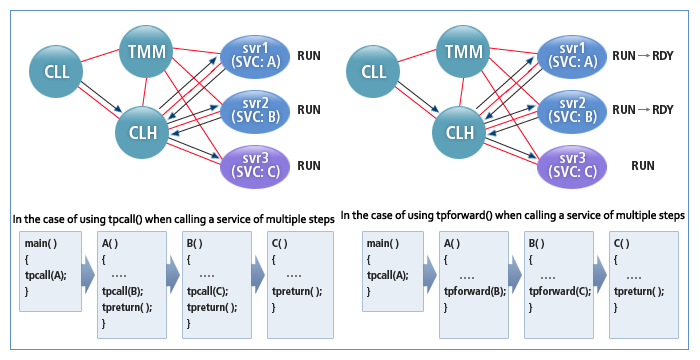

The following figure shows the process of major functions in the server program.

figure server prog process1
Comparison of tpcall and tpforward
Server Program Configuration

The server program consists of main() provided by Tmax and service routines written by the developer.

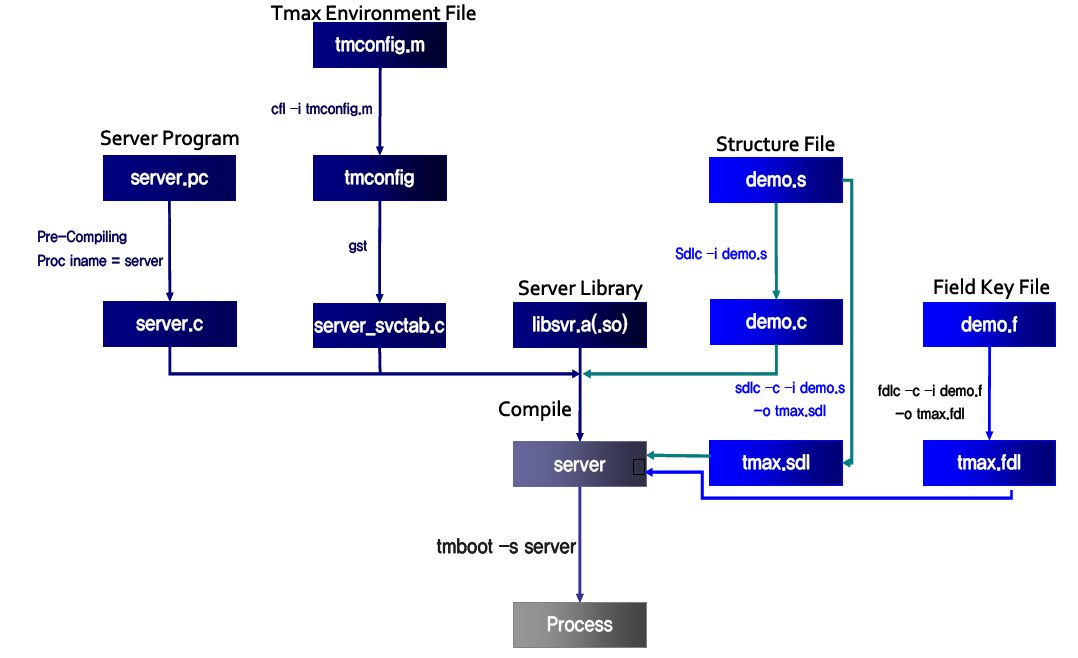

The following figure shows the configuration of a server program.

figure server prog
Tmax Server Program Configuration

  • Server Program

    A service routine written by the developer. It handles client requests.

    If SQL statements are used, they must be precompiled using the tools provided by the corresponding database vendor.

  • Tmax Server Library (libsvr.a / libsvr.so)

    The server library provided by Tmax. It has server main(), tpsvrinit(), tpsvrdone(), and various Tmax functions.

  • Service Table

    A file that lists the names of services provided by each server. It is created by referring to the Tmax configuration file.

    The service table is used to search for the location of a corresponding service routine within a server when a service is performed. It is provided by a system administrator. For more information, refer to Tmax Administration Guide.

  • Structure Binary Table (SDLFILE)

    If a structure-type buffer (STRUCT, X_C_TYPE, and X_COMMON) is used, a structure defined in the <xxx.s> format is required.

    There are two types of structure files: standard communication type (structure_file_name_sdl.c) and structure header file (structure_file_name_sdl.h). If a structure file is compiled using the sdlc –c command, a binary table used to convert the types of structure members to those of standard communication is created.

    If a structure is not used, $TMAXDIR/lib/sdl.o must be compiled with an application server.

  • Field Buffer Binary Table (FDLFILE)

    If a field buffer is used, a field buffer file defined in the format <xxxx.f> is needed. If the file is compiled using the fdlc command, a binary table, which is used to match field keys and data, and a header file (xxx_fdl.h), which is used to match field keys and field key names, are created. Unlike an existing structure file, the field buffer binary table can reduce resource waste because only the user desired fields can be operated and transferred. However, it can cause an opposite effect if there are too few fields because data values and field key values are managed together.

  • Structure and Standard Buffer Conversion/Reverse Conversion program

    To use a structure buffer within a server program, a structure and a standard buffer conversion/reverse conversion program (xxxx_sdl.c and xxxx_sdl.h) created with the sdlc command must be compiled and linked together. If a structure is not used, TMAXDIR/lib/sdl.o must be linked.

4. System Configuration File

The system configuration file includes information necessary for the Tmax system. The Tmax configuration file sets the configuration of the Tmax system and is written by a Tmax administrator. This file is used to create a service table and start the Tmax system.

The configuration file consists of the following 8 sections.

Section Description Required

DOMAIN Section

Defines the overall environment of an independent Tmax system environment.

Required

NODE Section

Defines the environment related to each node configuring the domain.

Required

SVRGROUP Section

Defines properties related to server groups and databases.

Required

SERVER Section

Defines properties related to servers.

Required

SERVICE Section

Defines properties related to services.

Required

GATEWAY Section

Defines properties related to gateways across domains.

Optional

ROUTING Section

Defines properties related to data dependent routing.

Optional

RQ Section

Defines properties related to reliable queues.

Optional

  • Names of sections start with an asterisk (*) (e.g., *DOMAIN, *NODE, etc.).

  • Names of a section and its child elements must start in the first space of a line.

  • Definitions of child elements are separated by a comma (,).

The configuration file is a general text file and compiled with the cfl command.

cfl -i Tmax configuration file name

The following is an example of the Tmax configuration file. (Values inside "< >" must be modified.)

*DOMAIN
<resrc_name> SHMKEY = <UNIQUE IPCKEY>,
             MAXUSER = <256>,
             TPORTNO = <8999>

*NODE
<uname>      TMAXDIR = <TMAX installed directory>
             APPDIR = <APPLICATION directory>
             PATHDIR = <PATH directory>

*SVRGROUP
<svg_name>   NODENAME = <uname>,
             DBNAME = <ORACLE>,
             OPENINFO = "ORACLE_XA+Acc=P/tmaxsoft/tmaxsoft+SesTm=60"

*SERVER
<svr_name>   SVGNAME = <svg_name>,
             MIN = <5>,
             MAX = <10>

*SERVICE
<svc_name>   SVRNAME = <svr_name>

For more information about each section, refer to Tmax Administration Guide.

5. API

When developing a program, a header file that defines API prototypes must be included. The APIs are implemented in the client/server library. For more information about APIs, refer to Tmax Application Development Guide and Tmax Reference Guide.

5.1. Tmax Standard API

X/Open ATMI

The X/Open ATMI (Application Transaction Monitor Interface) API is provided as a standard of the X/Open DTP model. It can be used as a method of communication between application programs and TP-Monitor.

The functions defined in atmi.h are divided into functions related to a buffer, service request and response, conversational mode, and service termination.

  • Buffer Allocation and Deallocation Functions

    Function Description

    tpalloc()

    Allocates a buffer for sending and receiving data.

    tprealloc()

    Changes the size of the buffer.

    tpfree()

    Frees an allocated buffer.

    tptypes()

    Provides information about buffer size and type.

  • Service Request and Response Functions

    Function Description

    tpcall()

    Requests a service and waits for a response.

    tpacall()

    Receives the processing result when tpgetrply() is called after requesting a service and performing other tasks.

    tpcancel()

    Cancels the response to a service request.

    tpgetrply()

    Receives the response to tpacall().

  • Conversational Mode Functions

    Function Description

    tpconnect()

    Establishes a connection for sending and receiving messages in the conversational mode.

    tpdiscon()

    Forcefully terminates a connection to a service in the conversational mode.

    tprecv()

    Receives a message in the conversational mode.

    tpsend()

    Sends a message in the conversational mode.

  • Service Shutdown Functions

    Function Description

    tpreturn()

    Sends a response to a service request to a client and terminates the service routine.
X/Open TX API

The X/Open TX API provides communication methods for transactions between application programs and TP-Monitor. The functions defined in tx.h are transaction management functions.

The following is a list of TX APIs.

  • Transaction-Related Functions

    Function Description

    tx_begin()

    Starts a transaction.

    tx_commit()

    Commits a transaction and saves the result.

    tx_rollback()

    Rolls back a transaction.

    tx_open()

    An internal function that starts a resource manager.

    tx_close()

    An internal function that terminates a resource manager.

    tx_set_transaction_timeout()

    Sets timeout for terminating a transaction.

    tx_info()

    Returns information about a global transaction.

    tx_set_commit_return()

    Sets when a global transaction is permitted.

    tx_set_transaction_control()

    Automatically starts the next transaction after the current transaction completes.

5.2. Non-Standard API

Tmax ATMI

Tmax ATMI functions defined in tmaxapi.h are divided into functions related to unrequested messages, RQ, error settings, timeout settings, etc. Defined APIs are non-standard interfaces and developed to improve the developer’s productivity. It can be used as a method of communication between application programs written by a developer and TP-Monitor.

The following is a list of non-standard APIs defined in tmaxapi.h.

  • Non-Request Data Functions

    Function Description

    tpbroadcast()

    Sends unrequested data to clients registered in a system.

    tpsetunsol()

    Specifies a function for handling unrequested data.

    tpgetunsol()

    Receives unrequested data.

    tpsetunsol_flag()

    Sets a flag for receiving unrequested data.

    tpchkunsol()

    Checks whether unrequested data arrives.

  • Error Handling Functions

    Function Description

    tpstrerror()

    Outputs an error as a string.

    Userlog()

    Logs an error in a buffer.

    ulogsync()

    Saves the contents of 'ulog' in a memory buffer on a disk.

    UserLog()

    Contains the features of userlog() and ulogsync().

    gettperrno()

    Returns an error number that occurs when the Tmax system is called.

    gettpurcode()

    Returns the urcode set by a developer.

    tperrordetail()

    Returns information about an error occurred when the Tmax system is called.

  • Socket Information Functions

    Function Description

    tpgetpeer_ipaddr()

    Returns the IP address of a connected client.

    tpgetpeername()

    Returns the name of a connected client.

    tpgetsockname()

    Returns the socket name of a connected client.

  • Block Timeout Setting Functions

    Function Description

    tpset_timeout()

    Sets block timeout.

  • Failure Handling Functions

    Function Description

    tptobackup()

    Establishes a connection to a backup machine.

  • Connection Functions

    Function Description

    tpstart()

    Starts a connection to the Tmax system.

    tpend()

    Terminates a connection to the Tmax system.

  • RQ-Related Functions

    Function Description

    tpenq()

    Saves a request of a client in RQ.

    tpdeq()

    Fetches data in RQ.

    tpqstat()

    Requests statistics about data saved in RQ.

    tpextsvcname()

    Requests a service name from data saved in RQ.

  • Environment Variable Functions

    Function Description

    tmaxreadenv()

    Fetches the environment variables from the file.

    tpputenv()

    Sets the environment variables.

    tpgetenv()

    Returns the values of the environment variables.

  • Window Operation Functions

    Function Description

    WinTmaxStart()

    Connects to the Tmax system.

    WinTmaxEnd()

    Disconnects from the Tmax system.

    WinTmaxSetContext()

    Specifies a Window handle.

    WinTmaxSend()

    Sends data.

    WinTmaxAcall()

    Asynchronous function for Windows.

    WinTmaxAcall2()

    Asynchronous function that handles data reception with a callback function.

  • Other Functions

    Function Description

    tpscmt()

    Invalidate settings related to transaction control in the configuration file.

    tpgetlev()

    Checks the transaction mode.

    tpchkauth()

    Checks whether certification is required.

    tpgprio()

    Checks the priority of a service request.

    tpsprio()

    Sets the priority of a service request.

    tpsleep()

    Waits for a message for a specified amount of time.

    tp_sleep()

    Waits for data to arrive (in seconds).

    tp_usleep()

    Waits for data to arrive (in microseconds).

    tpschedule()

    Allocates tasks in a queue to UCS so the tasks can be processed.

    tpuschedule()

    Waits a specified amount of time for data in a UCS server process.

    tpsvrinit()

    Initializes a Tmax server process.

    tpsvrdone()

    Calls a termination routine for a Tmax server process.

    tpsvctimeout()

    Shuts downs a UCS server process.

    tmadmin()

    Manages a system as a type of a service call.

The following is a list of non-standard APIs defined in atmi.h.

  • Service Shutdown Functions

    Function Description

    tpforward()

    Terminates its own service handling and transfers a client request to another service routine.

  • Client Connection Functions

    Function Description

    tpstart()

    Connects a client application to Tmax.

    tpend()

    Disconnects a client application from Tmax.
FDL API

FDL (Field Definition Language) is non-standard API developed to improve developer productivity. FDL is associative-typed data that manages indexes called field keys and data together. APIs related to a FIELD buffer are defined in fbuf.h.

Data is saved in a field key buffer, which is provided by the Tmax system. To operate the buffer, the following functions are provided:

  • Field Key Mapping Functions

    Function Description

    fbget_fldkey()

    Returns the field key value of a file name.

    fbget_fldname()

    Returns a field key name.

    fbget_fldno()

    Fetches the field number from a field key.

    fbget_fldtype()

    Fetches the type (integer) from a field key.

    fbget_strfldtype()

    Fetches the pointer value for the type from a field key.

  • Buffer Allocation Functions

    Function Description

    fbisfbuf()

    Checks whether the specified buffer is a field key buffer.

    fbinit()

    Initializes the memory space allocated to a field key buffer.

    fbcalcsize()

    Calculates the size of a field buffer.

    fballoc()

    Dynamically allocates a field key buffer.

    fbfree()

    Frees a field buffer.

    fbget_fbsize()

    Returns the size of a field key buffer in bytes.

    fbget_unused()

    Checks unused field buffer space.

    fbget_used()

    Returns used field key buffer space in bytes.

    fbrealloc()

    Adjusts the buffer size.

  • Field Access and Modification Functions

    Function Description

    fbput()

    Adds a field key to a field buffer.

    fbinsert()

    Specifies a field key and its location and saves the field value in a field buffer.

    fbchg_tu()

    Moves a specified field buffer before sending data.

    fbdelete()

    Deletes the field data of a buffer.

    fbdelall()

    Deletes all field values.

    fbdelall_tu()

    Deletes all field data enumerated in a field key array (fieldkey[]).

    fbget()

    Gets a field value in a buffer.

    fbgetf()

    Gets the field value of a specified field key in a field buffer.

    fbget_tu()

    Gets the value of a specific field key in a specified location.

    fbnext_tu()

    Gets the field values of a specific field key in a field buffer in order.

    fbgetalloc_tu()

    Internally allocates another buffer to save returned data and returns the pointer of the allocated buffer.

    fbgetval_last_tu()

    Gets the occurrence of a specific field key of a field buffer and recent data.

    fbgetlast_tu()

    Gets the most recent entered data of a field specified in a field buffer.

    fbgetnth()

    Searches a specific field value.

    fbfldcount()

    Returns the number of fields included in a specific buffer.

    fbkeyoccur()

    Returns the field number specified in a field key.

    fbispres()

    Checks whether the requested data exists in a field buffer.

    fbgetval()

    Returns the length of the requested data and a pointer to its location.

    fbgetvall_tu()

    Returns the actual value of a field in the long type.

    fbupdate()

    Updates the field value of a field key in a field buffer at a specified location.

    fbgetlen()

    Returns the first occurrence value of a specified field key in a field buffer.

  • Conversion Functions

    Function Description

    fbtypecvt()

    Converts a data type.

    fbputt()

    Attaches new data and its type into a field buffer.

    fbget_tut()

    Gets the field data of a specified location and specifies the field key type.

    fbgetalloc_tut()

    Converts the returned data type into a defined data type and internally allocates another buffer to save it.

    fbgetvalt()

    Returns a pointer to the returned value.

    fbgetvali()

    Returns the field data of the integer type.

    fbgetvals()

    Returns the field data of the string type.

    fbgetvals_tu()

    Returns the field data of the string type at a specified location.

    fbgetntht()

    Returns a converted value.

    fbchg_tut()

    Modifies the field key value from a specific starting point of a field buffer.

  • Buffer Operation Functions

    Function Description

    fbbufop()

    Compares, copies, moves, and modifies the data of two field buffers.

  • I/O Functions

    Function Description

    fbbufop_proj()

    Modifies a buffer corresponding to a field key.

    fbread()

    Used together with the standard input/output library. Reads a field buffer from a file.

    fbwrite()

    Used together with the standard input/output library. Writes to a file.

    fbprint()

    Standard input/output. Outputs buffer data.

    fbfprint()

    Outputs the available data of a field buffer in a file string.

  • Error Handling Functions

    Function Description

    fbstrerror()

    Gets the error message that occurs while operating a field buffer in a string.

    getfberrno()

    Returns an error number.

  • Other Functions

    Function Description

    fbmake_fldkey()

    Automatically creates a new field key without recording in FDLFILE.

    fbftos()

    Moves data saved in a field buffer to a C structure (stname).

    fbstof()

    Moves data saved in a C structure to a field buffer mapped to a structure file.

    fbsnull()

    Checks whether a member variable of a C structure mapped to the occurrence of the field key specified by a field buffer is NULL.

    fbstelinit()

    Initializes the field buffer and member variables of a C structure as NULL.

    fbstinit()

    Initializes the C structure mapped to a field buffer as NULL.

6. Error Message

6.1. X/Open DTP-Related Errors

If an error occurs while using the standard interfaces provided by X/Open DTP and non-standard interfaces provided by the Tmax system, an error value is saved to a global variable called tperrno. By checking tperrno, a developer can handle the error.

The following is a list of tperrno error messages. tperrno is a global variable that is set when an error occurs.

Error Message (tperrno) Description

TPEBADDESC(2)

Occurs when an invalid descriptor is used for an asynchronous or conversational type.

TPEBLOCK(3)

Occurs due to a network error.

TPEINVAL(4)

Occurs when an invalid argument is entered.

TPELIMIT(5)

Occurs when one or more various limit values provided by a system are exceeded.

TPENOENT(6)

Occurs when a service is not provided.

TPEOS(7)

Occurs when a connection cannot be established due to a system error.

TPEPROTO(9)

Occurs due to a protocol error.

TPESVCERR(10)

Occurs when a buffer of the Tmax system is damaged because an application program failed.

TPESVCFAIL(11)

Occurs due to a level service error of an application program.

TPESYSTEM(12)

Occurs due to a Tmax internal error (log message check).

TPETIME(13)

Occurs due to transaction timeout (BLOCKTIME).

TPETRAN(14)

Occurs when a transaction is cancelled due to a failure.

TPGOTSIG(15)

Occurs when a signal occurs.

TPEITYPE(17)

Occurs when an unregistered structure type or field key is used.

TPEOTYPE(18)

Occurs due to buffer usage or a type error.

TPEEVENT(22)

Occurs when an event occurs in the conversational mode.

TPEMATCH(23)

Occurs when a proper service does not exist for the tpdeq() function of RQ.

TPENOREADY(24)

Occurs when a server process is not ready.

TPESECURITY(25)

Occurs due to a security error.

TPEQFULL(26)

Occurs when the queue wait time of a server process exceeds timeout.

TPEQPURGE(27)

Occurs when an item in a queue is deleted due to a queue purge.

TPECLOSE(28)

Occurs when a connection to the Tmax system is released.

TPESVRDOWN(29)

Occurs when a server process is terminated due to an application program error.

TPEPRESVC(30)

Occurs when an error occurs while a previous service is processing.

TPEMAXNO(31)

Occurs when the number of concurrent users reaches the limit value.

For more information about errors and handling methods, refer to Tmax Application Development Guide and Tmax Error Message Guide.

6.2. FDL-Related Errors

Errors realted to the FDL interface are stored to the global variable called fberrno. By checking fberrno, developers can handle the error. This section explains the error messages related to FDL.

The following is the list of fberror error messages. fberror is a global variable that is set when an error occurs.

Error Message (fberror) Description

FBEBADFB(3)

Occurs when an improper buffer (not a field key buffer) is used.

FBEINVAL(4)

Occurs when an improper argument is used.

FBELIMIT(5)

Occurs when one or more various limit values provided by a system are exceeded.

FBENOENT(6)

Occurs when a corresponding field key does not exist in a buffer.

FBEOS(7)

Occurs when an error occurs in the OS.

FBEBADFLD(8)

Occurs when an improper field key is used.

FBEPROTO(9)

Occurs due to a protocol error.

FBENOSPACE(10)

Occurs when there is insufficient buffer space.

FBEMALLOC(11)

Occurs when an error occurs while allocating memory.

FBESYSTEM(12)

Occurs when an error occurs in a system.

FBETYPE(13)

Occurs when an error occurs due to a type.

FBEMATCH(14)

Occurs when there is no matched value.

FBEBADSTRUCT(15)

Occurs when an unregistered structure is used.

FBEMAXNO(19)

Occurs when an error number that does not exist is used.

For more information about errors and handling methods, refer to Tmax FDL Reference Guide and Tmax Error Message Guide.
