Linking Services

This chapter describes the basic concept of service link and how to implement each service link.

1. Overview

Service link refers to a combination of services in a way that mutual calls are made between different services. Such service link can be divided into several types according to classification criteria.

The types of service link are as follows:

Classification Service link type

Order

  • Link in advance

  • Prompt link

  • Post-link

Number

  • 1:1 link

  • Multi link

  • Comprehensive link

Location

  • Internal link

  • Async outer link

  • Other system link

Among the above service links, ProFrame supports only 3 service links.

  • Prompt link

  • 1:1 link

  • Internal link

    Internal link means a transaction that is made by combining individual transactions through calls between service modules within the core. The service that performs this internal link communicates using CommBuff, and can be executed by dividing it into core online internal link and core batch link.

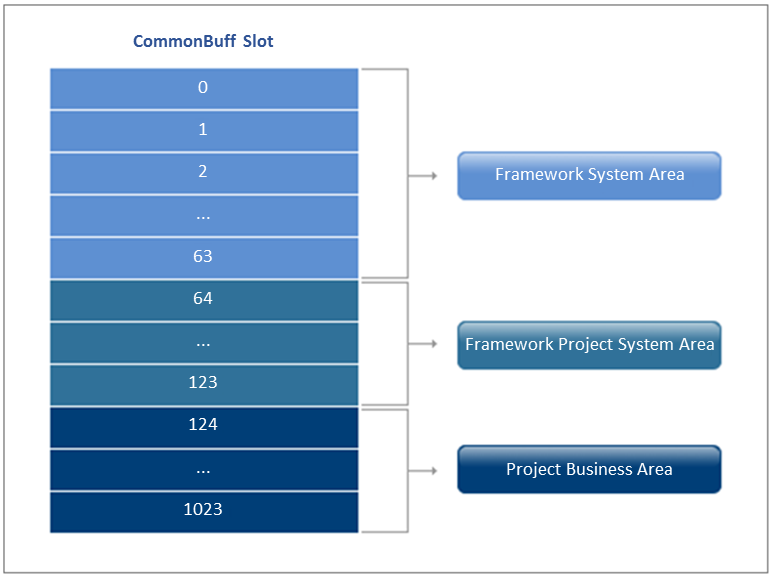

    The following describes internal link. Internal link uses CommBuff. To create a link between services, drag and drop an already created service module.

This guide describes the internal link among the services supported by ProFrame.

The following is the supported method according to the link type of each module.

Link Type Supported method and description

Service module→Business module

DlCall method (calling business module with DlCall method)

Service module↔Service module

DlCall and TpCall methods

Service module→Batch module

DlCall and TpCall methods

Batch module→Service module

It is only through the module provided by ProFrame.

2. Support Type by Service Link

The method of calling the service module is divided into DlCall method and TpCall method in ProFrame.

The following are the strength and weakness of the TpCall and DlCall methods.

TpCall DlCall

Strength

  • It is possible to replace with new business logic by restarting only the TP-Monitor of the changed logic.

  • There is no need for a separate shared memory and free communication is possible through M/W API.

  • Free transaction processing of 1-Tx and N-Tx is possible according to the developer’s judgment.

  • There is no need for IPC mechanism, and it can be handled with a low load similar to a function call.

  • Only the business logic changed by the Dlupdate function can be dynamically replaced.

  • Shared library policy is included to ensure efficient management of memory resources at all times.

Weakness

There is a load on the system as it requires an IPC mechanism.

  • By using a separate Shared Memory, memory resource usage increases and management points increase.

  • Only 1-Tx method can be processed.

Application Criteria

Transactions that need to be separated into separate transactions

(Example) Password error service

Transactions in which the linking operation unilaterally instructs the processing of the linked service and continues processing the linking.

(Example) SMS notification of deposit transaction history

Transactions linked to other systems

(Example) External transaction, internal transaction

General linked transactions within the core

(Example) Payment - Deposit linked transaction

Payment - Checking account

InterProcess Communication (IPC) refers to communication between individual processes to be executed simultaneously in one operating system.

DlCall and TpCall each have a set of supported transaction types. When creating an connecting transaction, you should decide which method to use by considering the strength and weakness of the two types of supported transaction types.

The following describes the DlCall and TpCall methods.

  • DlCall

    DlCall is a method of connection by directly calling the linked module. It does not support Async mode, and DlCall can be used only for 1-Tx of Sync mode.

    Async is a mode that handles the process of the linking operation without waiting for a response after requesting the linked service from the linking one, and Async Reply sets to receive a response after requesting the linked service from the linking one and wait until to receive a response.

    Sync Async (Async No Reply Method)

    1-Tx

    Available

    Unavailable

    N-Tx

    Unavailable

    Unavailable

    1-Tx processes the linking operation and the linked service as one transaction, and N-Tx processes the linking operation and the linked service separately.

  • TpCall

    In the TpCall method, 1-Tx and N-Tx methods can be used when using the Sync mode. However, in the case of the 1-Tx method, since the linking method that directly calls the module has a fast performance advantage, in the case of the 1-Tx method of the Sync mode, it is recommended to connect using DlCall.

    Additionally, only the N-Tx method can be used in the Async mode.

    Sync Async(Async No Reply Method)

    1-Tx

    Available

    (Due to performance issues, it is recommended to use DlCall.)

    Unavailable

    N-Tx

    Available

    Available

    Sync is a mode that waits until a response is received after requesting a service to be linked in the linking operation, and Async No Reply does not wait for a response from the linked one.

3. Implementation of Service Link

To implement service link, add other service modules by dragging and dropping them with the mouse in EMB Designer that includes service modules. At this time, the service link is implemented by modifying the Call Property among the properties of the added service module.

3.1. Call Property

The properties for service link can be set in the properties view of the studio. If you select the service module added here, the Call Property property as shown in the figure below appears in the properties view.

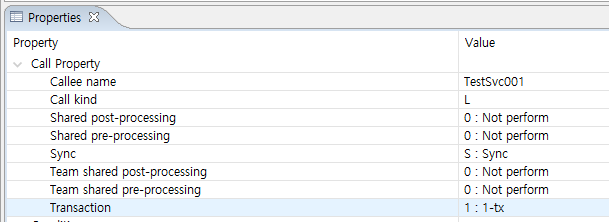

figure3 1
Example of Call Property

Following describes the Call Property.

Property Description

Callee name

Automatically sets when dragging and dropping the service module with the link module name.

Call Kind

Sets the link type.

Sets whether to select DlCall method or TpCall method for service connection. For example, in the case of the DlCall method, only 1-Tx and Sync processing is available.

  • L: Local Call (Module call, DlCall method) (Default value)

  • R: Remote Call(TP-Monitor service call, TpCall method)

'Call Kind' is a property that determines whether to perform DlCall or TP-Monitor service call-based TpCall for the link module. In general, it is set to DlCall to perform module call for internal link, but in other special cases, it is also set to TpCall.

  • In case of Local Call, only 1-Tx and Sync is processed. Therefore, when linking in 1-Tx or Sync mode, ‘L’ must be selected. Most of the internal links work with this setting.

  • In case of local call, IPC does not occur and the performance is good. Therefore, in case of link in 1-tx or Sync mode, Local Call must be selected.

  • In case of Async mode or N-Tx processing, ‘R’ must be selected. Local call cannot be processed as Async because it is a module-based call.

  • In the case of Remote Call, only one of the linking or linked services can be connected, and in the case of a Non-XA server, 1-Tx method cannot be connected.

  • In case of a local call, the linked user processing log is accumulated in the linking service log.

  • In case of remote call, each log is accumulated in the TP-Monitor server to which the linking and the linked service modules belong.

Shared pre-processing

Sets whether to perform system pre-processing as a linked operation.

  • 0: Not perform (Default value)

  • 1: Perform

Shared post-processing

Sets whether to perform system post-processing as a linked operation.

  • 0: Not perform (Default value)

  • 1: Perform

Sync

In case of invoking a linked operation in Sync mode, the linking operation service waits until the linked one is returned.

In case of invoking a linked operation in the Async mode, the logic of the linking operation is continuously executed immediately after invoking the linked one in the linking operation.

  • S: Sync (Default value)

  • A: Async and No Reply

  • a: Async and GetReply

Team shared pre-processing

Sets whether or not to perform pre-processing of tasks as a linked operation.

  • 0: Not perform (Default value)

  • 1: Perform

Team shared post-processing

Sets whether or not to perform post-processing of tasks as a linked operation.

  • 0: Not perform (Default value)

  • 1: Perform

Transaction

Sets the transaction processing category.

  • 1: 1-Tx (Default value)

    When processing the connecting operation service and the linked operation service as one transaction, it is set as 1-Tx (commit/rollback of the linked operation is determined by the linking operation).

  • N: Tx

    In the case of separating the transaction of the linking operation service and the linked operation service, it is set in the N-Tx method (commit/rollback of the linking one and the linked one service is processed separately).

3.2. Linking Method of DlCall

The default setting value of internal linking call property is used for call property setting. When using the DlCall method, only Sync/1-Tx processing is possible for link settings.

Invoking Connected Operation Service Module with DlCall

In the case of invoking the linked service module with DlCall, the EMB module creation for the module for performing the linking operation and the linked operation must be completed.

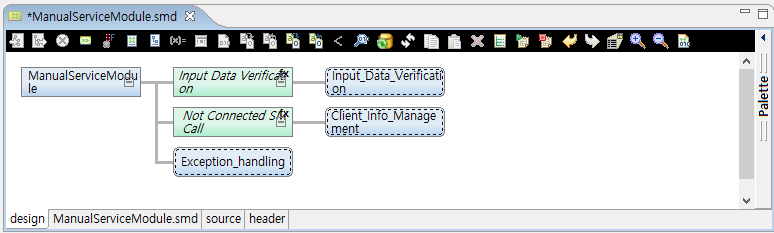

figure3 2
EMB Designer – Example of Calling DlCall for Linked Service

The following is a source example that calls DlCall for a service module to be linked.

static long InnerModule2(ManualServiceModuleContext *context)
{
    long rc = RC_NRM;

    // User Variables Declaration

    {
        /**************************************
         * KIND     : Service Module Call
         * NODE ID  : 5
         * NAME     :
         * DESCRIPTION :
         *************************************/
①      PfmLinkHeader linkHeader = { "CustomerInfoManagerment",
              "CustomerInfoManagerment", "PFM4", 'L', 0, 0, 0, 0, '1', 'S'};
        STR1_IN temporaryInput;
        STR1_OUT temporaryOutput;

        bzero(&temporaryInput, sizeof(STR1_IN));
        bzero(&temporaryOutput, sizeof(STR1_OUT));
        //DO_NOT_MODIFY_THIS_LINE-----------START_OF_CODE:BEFORE_CODE NODEID5------------------//
②      context->inCtxCustomerInfoManagerment.empno = INPUT->empno;//empno = empno
        //DO_NOT_MODIFY_THIS_LINE-----------END_OF_CODE:BEFORE_CODE NODEID5------------------//

        /**************************************
         *   KIND        : Service Module Callee Info
         *   NAME        : true
         *   INPUT       : STR1_IN
         *   OUTPUT      : STR1_OUT
         *************************************/
③      PFM_TRY(pfmServiceModuleCall(&temporaryInput, &temporaryOutput, &linkHeader, sizeof(STR1_IN), sizeof(STR1_OUT)));
        //DO_NOT_MODIFY_THIS_LINE-----------START_OF_CODE:SERVICE_MODULE_EXCEPTION NODEID5------------------//

        //DO_NOT_MODIFY_THIS_LINE-----------END_OF_CODE:SERVICE_MODULE_EXCEPTION NODEID5------------------//

        //DO_NOT_MODIFY_THIS_LINE-----------START_OF_CODE:AFTER_CODE NODEID5------------------//
④      OUTPUT->empno = context->outCtxCustomerInfoManagerment.empno;//empno = empno
        //DO_NOT_MODIFY_THIS_LINE-----------END_OF_CODE:AFTER_CODE NODEID5------------------//
    }
    return RC_NRM;

PFM_CATCH:
    return rc;
}

The following is a description of each number among the above sources.

① Link Header option according to Call Property setting.

Call Property Option value

Callee name

"CustomerInfoManagerment"

Transaction Code

"CustomerInfoManagerment"

Inst Number

"PFM4"

Call Kind

'L'

Shared Pre-Processing

0

Shared Post-Processing

0

Team Shared Pre-Processing

0

Team Shared Post-Processing

0

Transaction Type

‘1’

Sync Type

‘S’

② Map the input structure.

③ Call the service module.

④ Map the output structure.

3.3. Linking Method of TpCall

This section describes the case of calling the linked service module with TpCall.

Most of service links can be connected by dragging and dropping the linked module to the EMB module of the linking module without setting the call property. However, since service link using DlCall cannot process transactions separately, some of the internal link uses the TpCall method by calling the linked module.

If the TpCall method is used, asynchronous processing between the linking module and the linked module is possible, and it is also possible to process the transaction separately by setting the values of 'Call Kind', 'Sync Type', and 'Transaction Type' of Call Property.

The TpCall method is used when calling a link service that requires a transaction to be separated. A module for linking and linked processing must be created in EMB Designer. In addition, most of the internal link process is the same as the general case of internal link, but there is a difference only in the setting of call properties.

After setting the module for setting the internal link type in EMB Designer, if you check the [Properties] view in ProFrame Studio, the Call Property that allows you to set the internal link type is displayed.

The following describes how to process 1-Tx or N-Tx for each Sync and Async mode using the TpCall method when the linked operation is a service module.

  • Sync

    Processing Method Description

    1-Tx

    If TpCall is used for Sync mode and 1-Tx processing, the performance of TpCall, which performs TP-Monitor service-based calls, is lowered compared to DlCall that directly calls the module, so the Sync/1-Tx method is used and it is recommended to use DlCall.

    N-Tx

    Transactions are processed separately, and link processing is performed in a synchronous processing method. For details, refer to "Sync : N-Tx Processing Method".

  • Async

    Processing Method Description

    No Reply/1-Tx

    It is a structure that cannot be used.

    No Reply/N-Tx

    In this method, asynchronous processing is performed and the transaction of the linking and linked modules is separated and performed without waiting for a response from the linked module. For details, refer to "Async : No Reply/N-Tx Processing Method".
Sync : N-Tx Processing Method

Transactions are processed separately, and link processing is performed in a synchronous processing method. The linking module and the linked module are processed as different transactions, and the log about the linking and linked processing is left in the TP-Monitor server to which they belong.

The following is a description of TpCall/Sync/N-Tx processing.

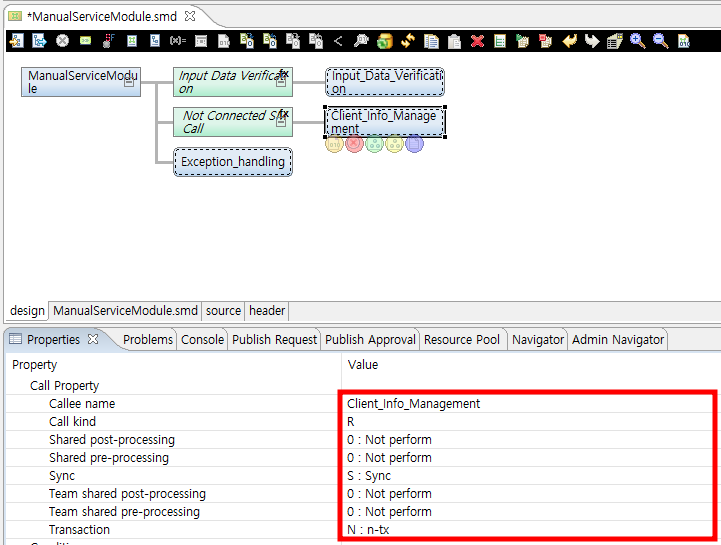

figure3 3
Example of TpCall/Sync/N –Tx Processing – Call Property Setting

The following is a source example of the service module for TpCall/Sync/N-Tx processing.

static long InnerModule2(ManualServiceModuleContext *context)
{
    long rc = RC_NRM;

    // User Variables Declaration

    {
        /**************************************
         * KIND     : Service Module Call
         * NODE ID  : 5
         * NAME     :
         * DESCRIPTION :
         *************************************/
①      PfmLinkHeader linkHeader = { "CustomerInfoManagerment",
                 "CustomerInfoManagerment", "PFM4", 'R', 0, 0, 0, 0, 'N', 'S'};
        STR1_IN temporaryInput;
        STR1_OUT temporaryOutput;

        bzero(&temporaryInput, sizeof(STR1_IN));
        bzero(&temporaryOutput, sizeof(STR1_OUT));
        //DO_NOT_MODIFY_THIS_LINE-----------START_OF_CODE:BEFORE_CODE NODEID5------------------//
②      context->inCtxCustomerInfoManagerment.empno = INPUT->empno;//empno = empno
        //DO_NOT_MODIFY_THIS_LINE-----------END_OF_CODE:BEFORE_CODE NODEID5------------------//

        /**************************************
         *   KIND        : Service Module Callee Info
         *   NAME        : true
         *   INPUT       : STR1_IN
         *   OUTPUT      : STR1_OUT
         *************************************/
③      PFM_TRY(pfmServiceModuleCall(&temporaryInput, &temporaryOutput, &linkHeader, sizeof(STR1_IN), sizeof(STR1_OUT)));
        //DO_NOT_MODIFY_THIS_LINE-----------START_OF_CODE:SERVICE_MODULE_EXCEPTION NODEID5------------------//

        //DO_NOT_MODIFY_THIS_LINE-----------END_OF_CODE:SERVICE_MODULE_EXCEPTION NODEID5------------------//

        //DO_NOT_MODIFY_THIS_LINE-----------START_OF_CODE:AFTER_CODE NODEID5------------------//
④      OUTPUT->empno = context->outCtxCustomerInfoManagerment.empno;//empno = empno
        //DO_NOT_MODIFY_THIS_LINE-----------END_OF_CODE:AFTER_CODE NODEID5------------------//
    }
    return RC_NRM;

PFM_CATCH:
    return rc;
}

The following is a description of each number among the above sources.

① Link Header option according to Call Property setting.

Call Property Option value

Callee name

"CustomerInfoManagerment"

Transaction Code

"CustomerInfoManagerment"

Inst Number

"PFM4"

Call Kind

'R'

Shared Pre-Processing

0

Shared Post-Processing

0

Team Shared Pre-Processing

0

Team Shared Post-Processing

0

Transaction Type

‘N’

Sync Type

‘S’

② Map the input structure.

③ Call the service module.

④ Map the output structure.

Async : No Reply/N-Tx Processing Method

An asynchronous processing is performed and the transaction of the linking and the linked modules is separated and performed without waiting for a response from the linked module.

The following is a description of TpCall/Async-No Reply/N-Tx processing.

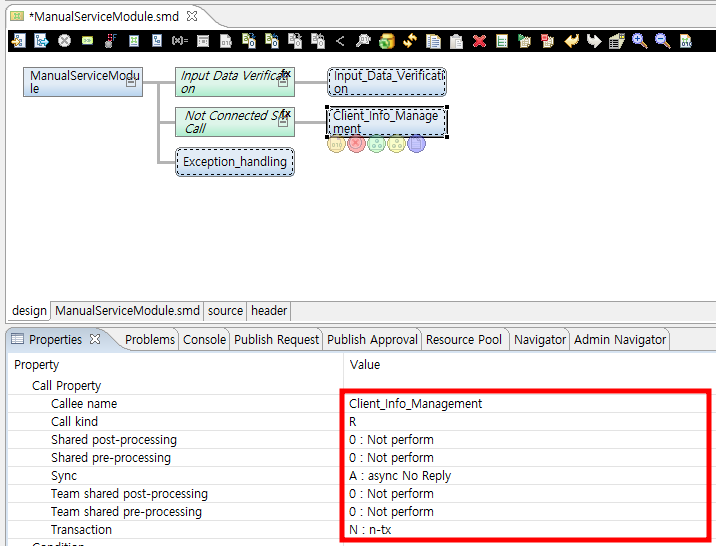

figure3 4
Example of TpCall/Async – No Reply/N-Tx Processing – Call Property Setting

The following is a source example of the service module for TpCall/Async-No Reply/N-Tx processing.

static long InnerModule2(ManualServiceModuleContext *context)
{
    long rc = RC_NRM;

    // User Variables Declaration

    {
        /**************************************
         * KIND     : Service Module Call
         * NODE ID  : 5
         * NAME     :
         * DESCRIPTION :
         *************************************/
①      PfmLinkHeader linkHeader = { "CustomerInfoManagerment",
                  "CustomerInfoManagerment", "PFM4", 'R', 0, 0, 0, 0, 'N', 'A'};
        STR1_IN temporaryInput;
        STR1_OUT temporaryOutput;

        bzero(&temporaryInput, sizeof(STR1_IN));
        bzero(&temporaryOutput, sizeof(STR1_OUT));
        //DO_NOT_MODIFY_THIS_LINE-----------START_OF_CODE:BEFORE_CODE NODEID5------------------//
②      context->inCtxCustomerInfoManagerment.empno = INPUT->empno;//empno = empno
        //DO_NOT_MODIFY_THIS_LINE-----------END_OF_CODE:BEFORE_CODE NODEID5------------------//

        /**************************************
         *   KIND        : Service Module Callee Info
         *   NAME        : true
         *   INPUT       : STR1_IN
         *   OUTPUT      : STR1_OUT
         *************************************/
③      PFM_TRY(pfmServiceModuleCall(&temporaryInput, &temporaryOutput, &linkHeader, sizeof(STR1_IN), sizeof(STR1_OUT)));
        //DO_NOT_MODIFY_THIS_LINE-----------START_OF_CODE:SERVICE_MODULE_EXCEPTION NODEID5------------------//

        //DO_NOT_MODIFY_THIS_LINE-----------END_OF_CODE:SERVICE_MODULE_EXCEPTION NODEID5------------------//

        //DO_NOT_MODIFY_THIS_LINE-----------START_OF_CODE:AFTER_CODE NODEID5------------------//
④      OUTPUT->empno = context->outCtxCustomerInfoManagerment.empno;//empno = empno
        //DO_NOT_MODIFY_THIS_LINE-----------END_OF_CODE:AFTER_CODE NODEID5------------------//

    }
    return RC_NRM;

PFM_CATCH:
    return rc;
}

The following is a description of each number among the above sources.

① Link Header option according to Call Property setting.

Call Property Option Value

Callee name

"CustomerInfoManagerment"

Transaction Code

"CustomerInfoManagerment"

Inst Number

"PFM4"

Call Kind

'R'

Shared Pre-Processing

0

Shared Post-Processing

0

Team Shared Pre-Processing

0

Team Shared Post-Processing

0

Transaction Type

‘N’

Sync Type

‘A’

② Map the input structure.

③ Call the service module.

④ Map the output structure.

3.4. Transferring CommBuff Data of Internal Link

When performing internal link between services or service modules within the core, data transfer between linking and linked modules occurs through CommBuff.

CommBuff is largely divided into a framework area and a work area.

  • Framework Area

    In case of link with an area where delivery between services is possible, it is delivered to the service inside the core by the framework area.

  • Work Area

    It is an area where work can be shared. However, it is not transmitted to other online tasks.

The following describes the composition of CommBuff Slot.

figure3 5
CommBuff Slot Composition

  • Framework System Area

    As a space used internally in the framework system, it has the same items regardless of the project.

  • Framework Project System Area

    It is used internally in the framework system and is modified and used according to the project requirements.

  • Project Business Area

    It is assigned and used by the work team according to the project work requirements.

In the CommBuff Slot configuration of CommBuff Slot Composition, from 0 to 123, the framework delivers data to the area where data is delivered through CommBuff between internal link. For the shared area within the task, data transfer is performed using the macro defined by assembling the contents of the CommBuff Slot between the tasks.

When performing internal link, data transfer using CommBuff between linking and linked modules is performed in the order shown in the figure below.

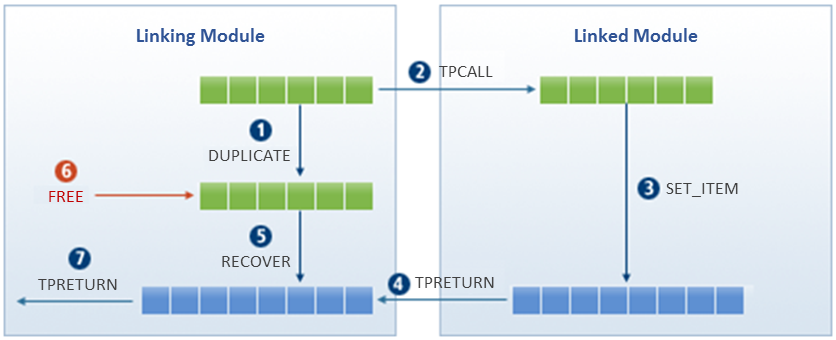

figure3 6
Flowchart of CommBuff Usage of Internal Link

The following describes the figure above.

① DUPLICATE

Duplicates the CommBuff of the main character.

② TPCALL

Delivers the replicated CommBuff data while calling the linked service.

③ SET_ITEM

Changes the CommBuff data received from the linked service.

④ TPRETURN

Returns the changed CommBuff to the linking service as a result value.

⑤ RECOVER

Restores the CommBuff data changed by the linked service to the CommBuff before duplication.

⑥ FREE

Releases the duplicated CommBuff in ①.

⑦ TPRETURN

Sends the final result value to the client computer.

If CommBuff is not released, memory shortage occurs. Therefore, the linking module must perform CommBuff release.

4. Precautions in Implementing Service Connection

A service module can call any module including other service modules. Also, resource modules that can be created in ProFrame such as DBIO can be called. Note that it is unavailable to call the identical module and this may lead to an infinite loop.

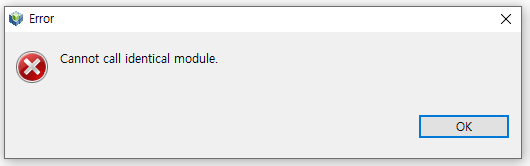

figure3 7
Error Notification Window When Calling Identical Module

4.1. Use of CommBuff

Service module can use CommBuff unlike other modules of business module. However, the pre-processing module and the post-processing module can use CommBuff.

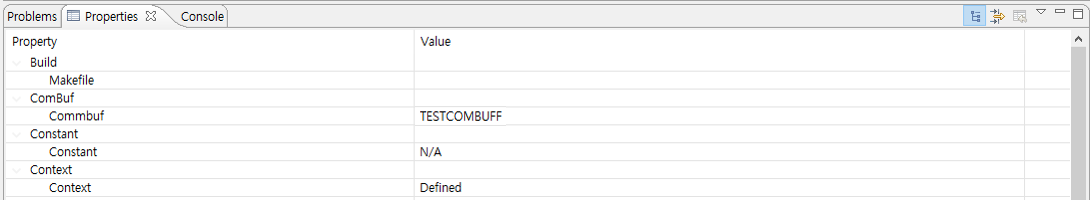

  • CommBuff information of service module

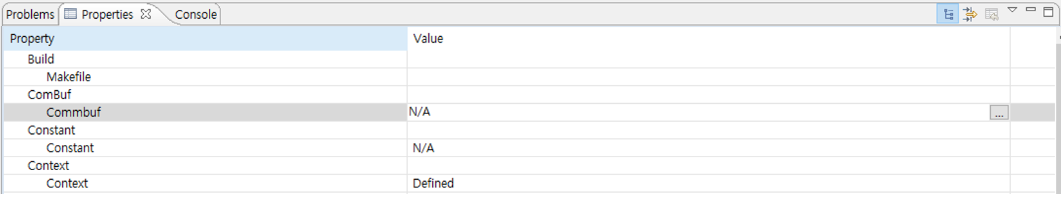

  • CommBuff information of pre-processing module (Undefined)


  • Other modules - No CommBuff information


4.2. Constraints in Use of CommBuff Items

Do not change the CommBuff item used internally by the framework to prevent the problem of stability and consistency in the framework.

For the main items of CommBuff mentioned in the table below, the developer should not directly change it, and if it is necessary to change it, use the API provided by ProFrame.

CommBuff Item Usage Change

PFM_HDR_EXT

ProFrame standard message header content

Available

PFM_LOGHEAD

Business log header

Available

PFM_VAR_SHARE

Internal data of the framework

Unavailable

PFM_SVCPARAM

Service parameter

Unavailable

4.3. EMB Module Design

The online program has the basic structure of initial processing, input verification, main processing, termination processing, and exception processing.

In the second level, exception handling can be processed by VM if the contents are simple.

The following is an example of a basic template design.

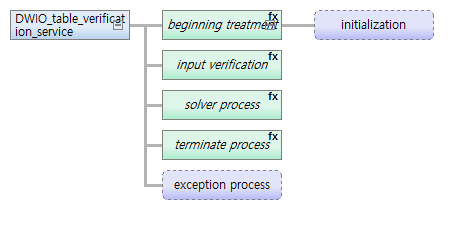

figure3 11
Example of Online Program Basic Template

When designing an EMB module, consider the following.

  • Design within 5 levels.

  • Create in the form of initial processing, input verification, termination processing, and exception processing.

    • Even if there is no business logic, the form is maintained.

    • Exception handling implements logic that is executed when it is not normally terminated.

  • At 2nd level, place IM. (Exception handling is excluded.)

  • If the VM is divided into too small units, it may be difficult to understand the flow of the EMB module.

  • It is not recommended to list VMs consecutively.

  • Enter the logical names according to the characteristics of the module to increase visibility.

  • If the logical name is long, it is automatically wrapped by separating it with a space.

  • It is not recommended when the subnode of IM is only one VM.

  • Later, IM is set to 'function' and VM to 'block'.

  • Process logical branches as XOR.

  • Create the VM that is repeated inside the online program to VF.
